Writing custom Widgets in Flutter (Part 3.a) — SimpleOverlay (with helpers)

Intro

In previous articles we discussed how to create leaf Widget without children and Widget with a single child. Now it is time to create more complex Widget with multiple children.

Today I will describe how to create a SimpleOverlay Widget. The only thing it does is placing one Widget and overlaying it with a different Widget while keeping the size of the first Widget. It is such a simple concept but I’m using it quite often in my projects.

Hm… Can’t we use Stack for this? In the case when size of a child is known in advance — yes. But otherwise it doesn’t allow any dependencies between children.

Update: you actually can use Stack for this with Positioned.filled(overlay) while also specifying Stack.fit to passthrough.

Code

First of all we need to create our own Widget:

This time instead of SingleChildRenderObjectWidget we extend MultiChildRenderObjectWidget because we have multiple children. This base class requires us to pass all children via constructor as a list. Order here does matter — painting is done from the first child to the last child while hit tests use reversed order.

Same as with SingleChildRenderObjectWidget, we don’t need to implement our own Element, everything is handled for us.

When using MultiChildRenderObjectWidget we need to declare one additional class — ContainerBoxParentData. Parent data allows us to store arbitrary data inside of each child directly (something similar to LayoutParams in Android). MultiChildRenderObjectWidget uses ParentData to store references to previous and next child resulting in a doubly linked list data structure for children storage:

Thats all, pretty simple. You can find mentioned about linked list references inside ContainerParentDataMixin:

Next thing is to create our RenderObject:

We must mix ContainerRenderObjectMixin in order to use our RenderObject with MultiChildRenderObjectWidget. This mixin contains logic for adding, attaching, moving, removing, detaching and iterating over children RenderObjects (in other words tons of mandatory boilerplate code). RenderBoxContainerDefaultsMixin by default doesn’t do anything at all but rather contains a few helpers to use when painting or hit testing.

Remember ParentData? Well, now we need to actually set it for each child:

After that goes our usual layout logic:

firstChild and childAfter are provided by ContainerRenderObjectMixin. If you recall, first child is our main child and second child is our overlay. We use childAfter instead of lastChild because firstChild and lastChild will return the same object when only one child is present (and this will result in a bug).

The last things we need to implement is painting and hit testing. And here comes RenderBoxContainerDefaultsMixin to the rescue:

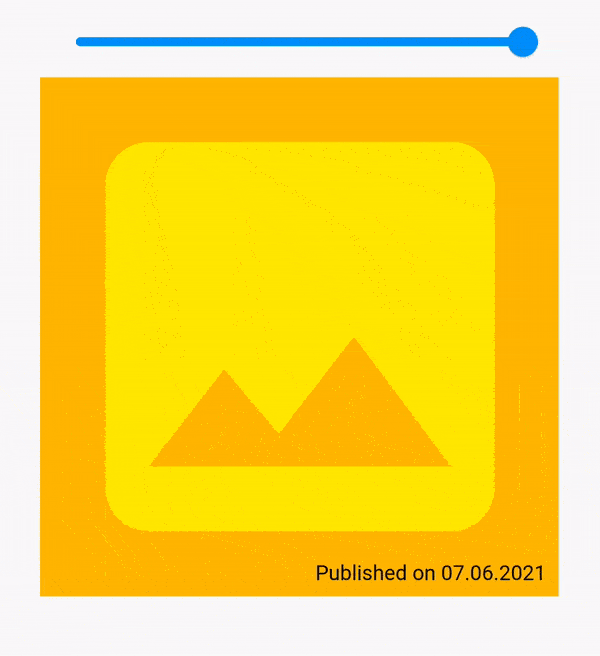

And here is the result:

You can find implementation on my GitHub:
https://github.com/MatrixDev/Flutter-CustomWidgets

Hope you liked it!

In the next article I’ll show how to achieve the same result without helpers manually.
